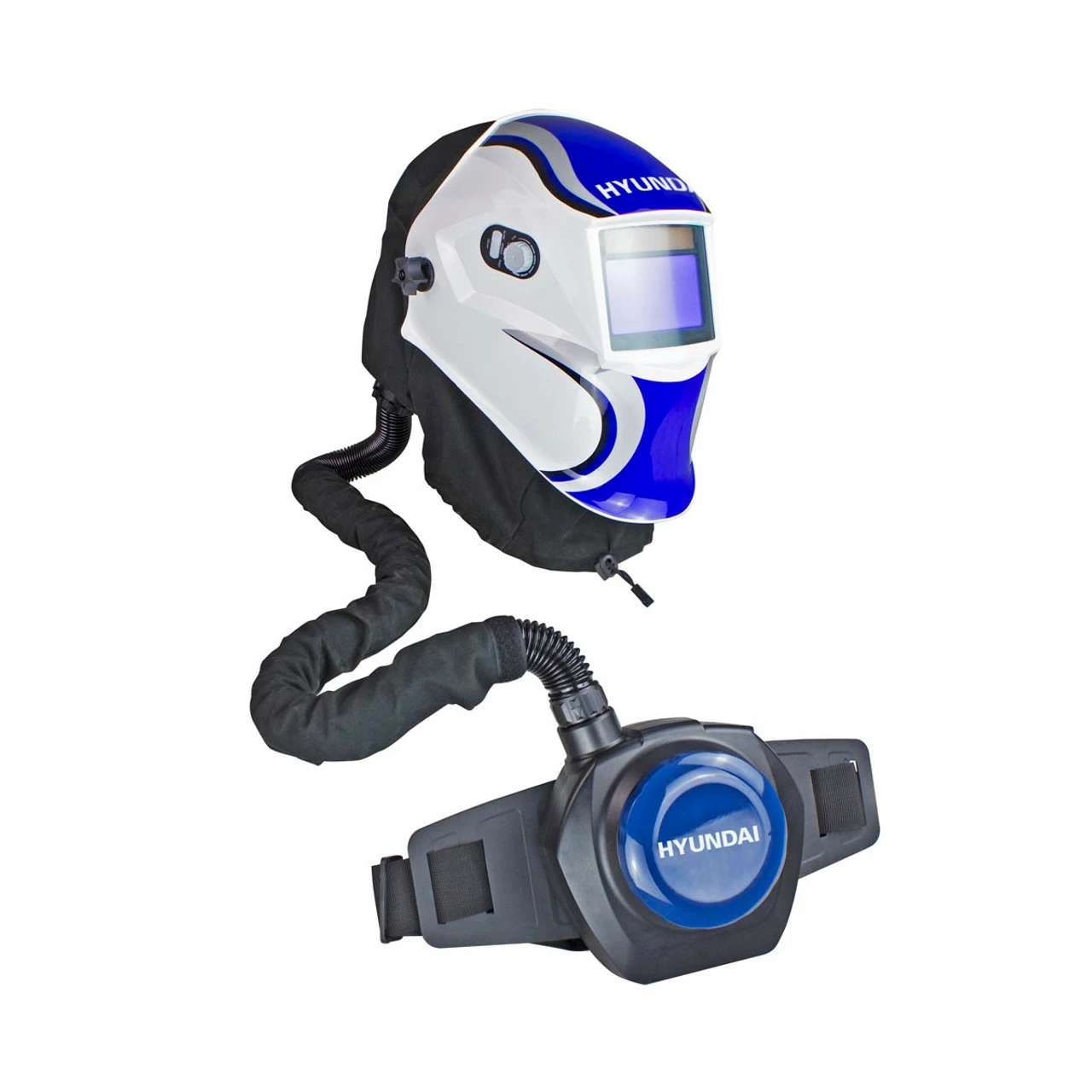

Hyundai HYWH-850RM Professional Air Fed Welding Helmet

Hyundai HYWH-850RM Professional Air Fed Welding Helmet

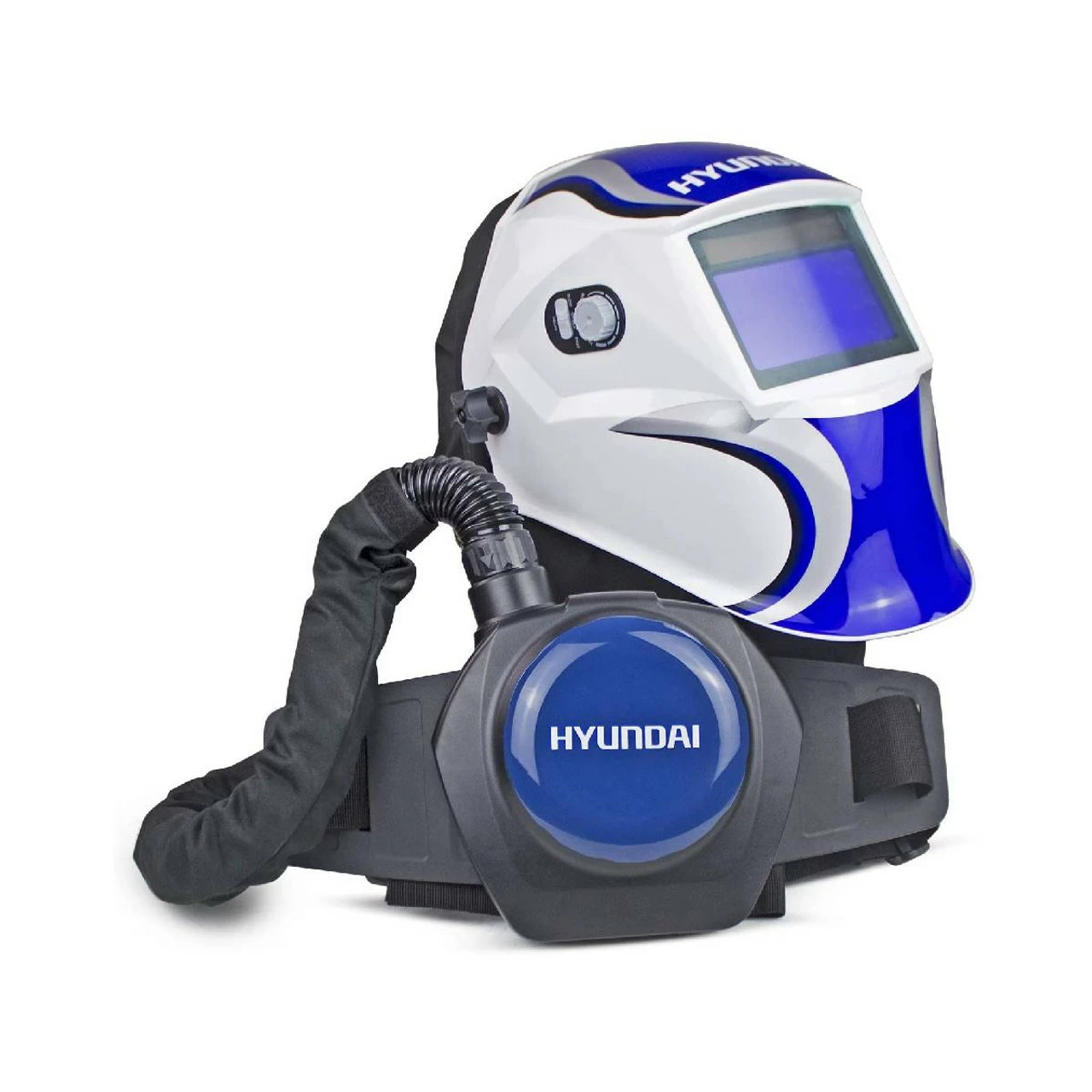

The HYWH-850RM is a professional air fed welding helmet from Hyundai, featuring solar auto-dimming with spectral filtering technology, photoelectric sensors and liquid crystal light control technology, the HYWH-850RM offers full head respiratory protection to the welder, the perfect welding solution for welders in the most demanding conditions where filtered air is a must for a safe and comfortable working environment.

Weighing only 1.1kg and supplied within a kit bag for easy storage and transport. The lightweight, compact design enables the user to wear comfortably for long periods of time and the soft fabric ensures a complete seal against hazardous fumes.

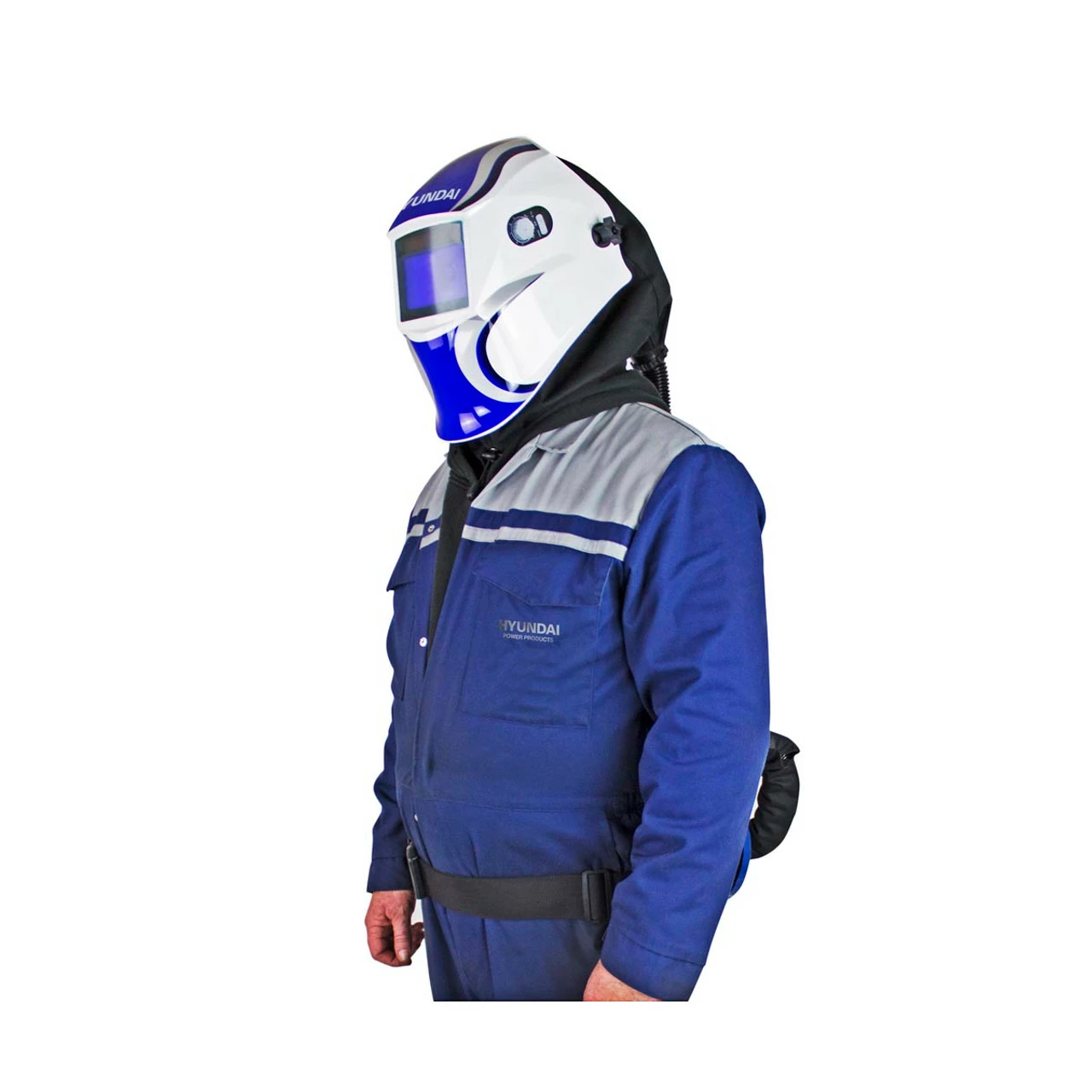

Air supplied welding helmets use an air powered blower system that is worn by the welder around his waist which collects and filters the ambient air to a very high degree. Providing 99.8% purity the HYWH-850RM delivers fresh clean air to the welders breathing area for up to 8 hours without interruption.

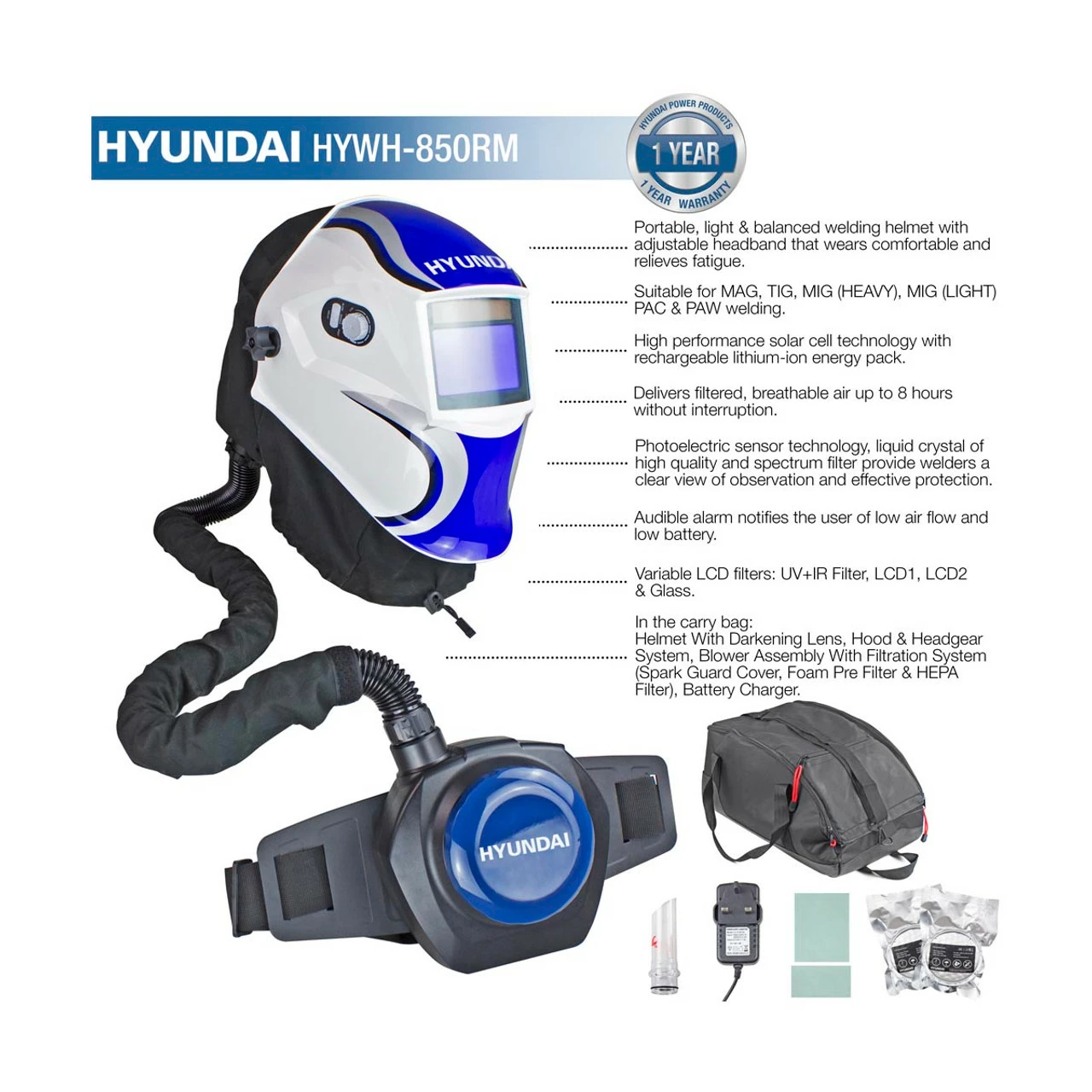

HYWH-850RM Features:

• Portable, light & balanced welding helmet with adjustable headband that wears comfortable and relieves fatigue. With full head protection that covers ears, neck and both sides of the head
• Suitable for MAG, TIG, MIG (HEAVY), MIG (LIGHT) PAC & PAW Welding
• Features a high performance solar cell technology with rechargeable lithium-ion energy pack
• Delivers filtered, breathable air up to 8 hours without interruption
• Photoelectric sensor technology, liquid crystal of high quality and spectrum filter provide welders a clear view of observation and effective protection

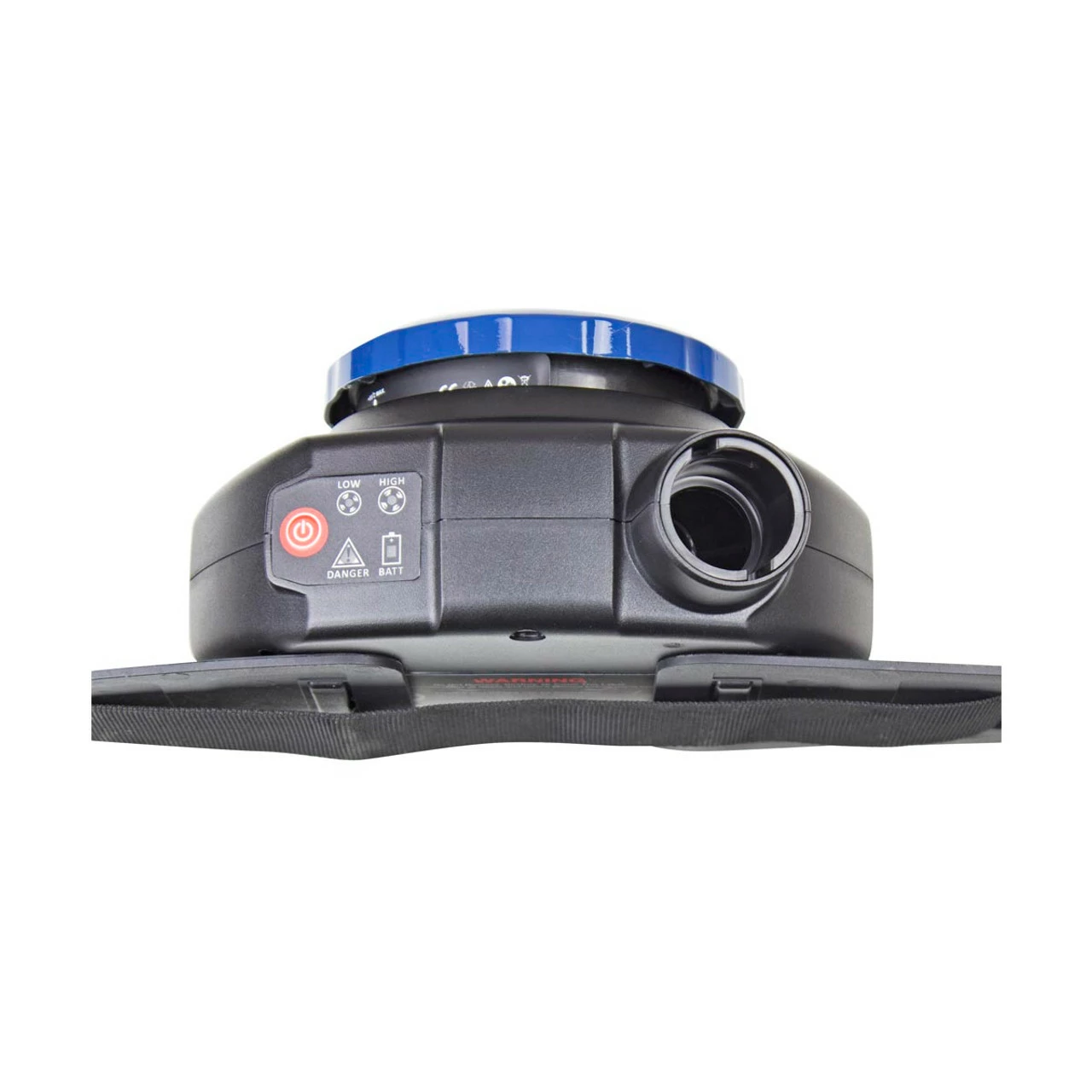

• Audible alarm notifies the user of low air flow and low battery
• Optimal visibility with variable LCD filters: UV+IR Filter, LCD1, LCD2 & Glass
• Covered by 1 year Hyundai warranty

HYWH-850RM Specification:

• Switching Time: 1/30000S From Light To Dark
• Air Flow Low Speed (RPM): 5.29 Cubic Feet Per Minute (150 LPM)
• ADF Self Check: YES
• Low Volume Alarm: YES
• Low Amperage TIG Rated: >5amps(DC/AC)

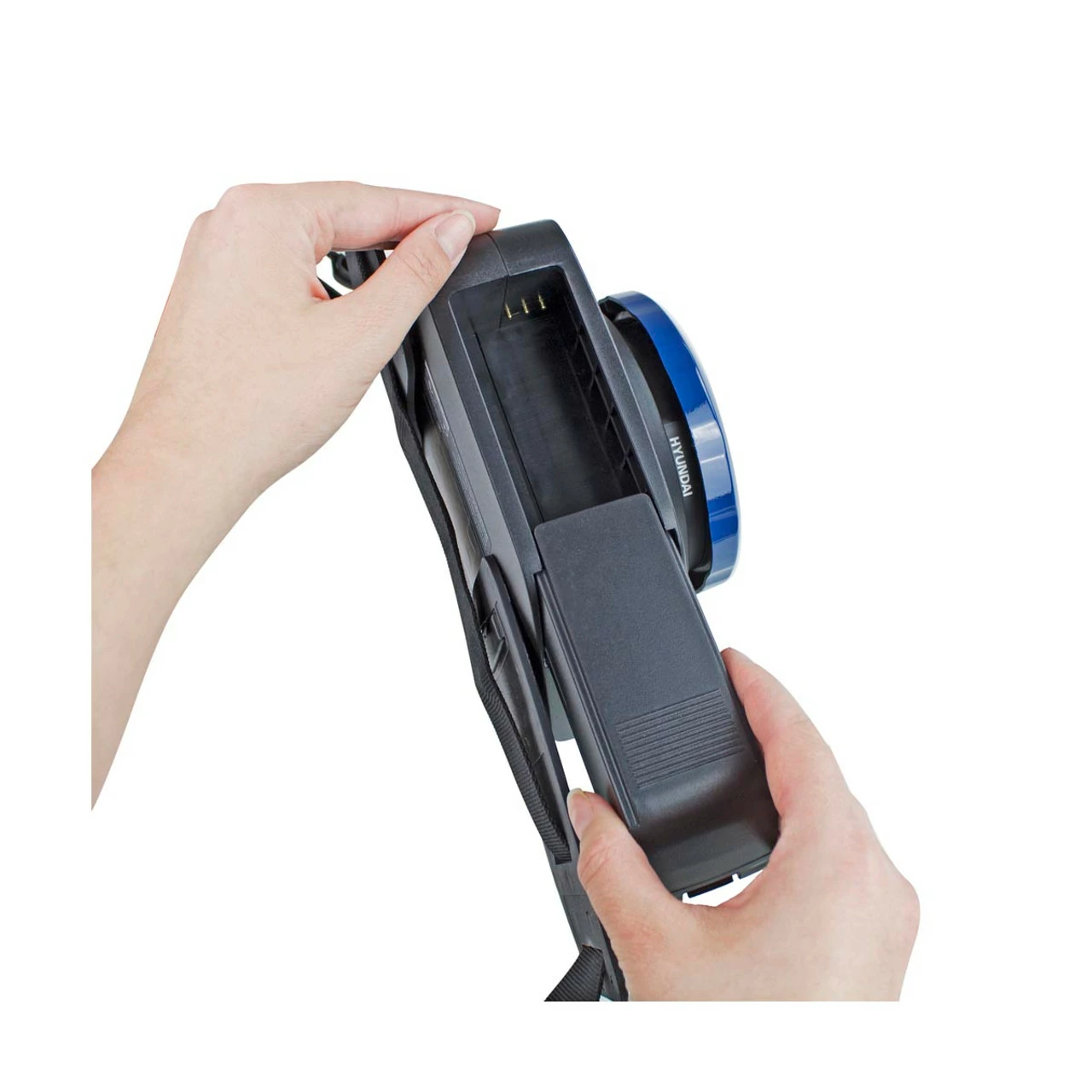

• Battery Type (Ah): Rechargeable Lithium
• Cartridge Size: 125x102x10mm
• Dark State Variable Shade: 5~8/9~13
• Dark To Light: 0.1-1.0S From Low To High
• Standard Air Filter: Filter Assembly Consisting Of Foam Prefilter & HEPA Filter. (Approved To Filter Particulate Down To 0.3 Micrometers In Size Filter: TH2P
• Grinding Function: YES
• Battery Life: 500 Charges – Run Time Dependent On Air Flow Rate & Filter Load
• Light State: DIN 4
• Operation Temperature: -5°C To 55°C
• Optical Class: 1/1/1/2
• Power Fully: Automatic
• Power Supply: Solar Cell +2 Replaceable CR2450 Lithium Battery (Ah)
• UV/IR Protection: Up To Shade DIN 16 At All Times
• Runtime Low Speed (RPM): High Speed (RPM): 6-8hrs

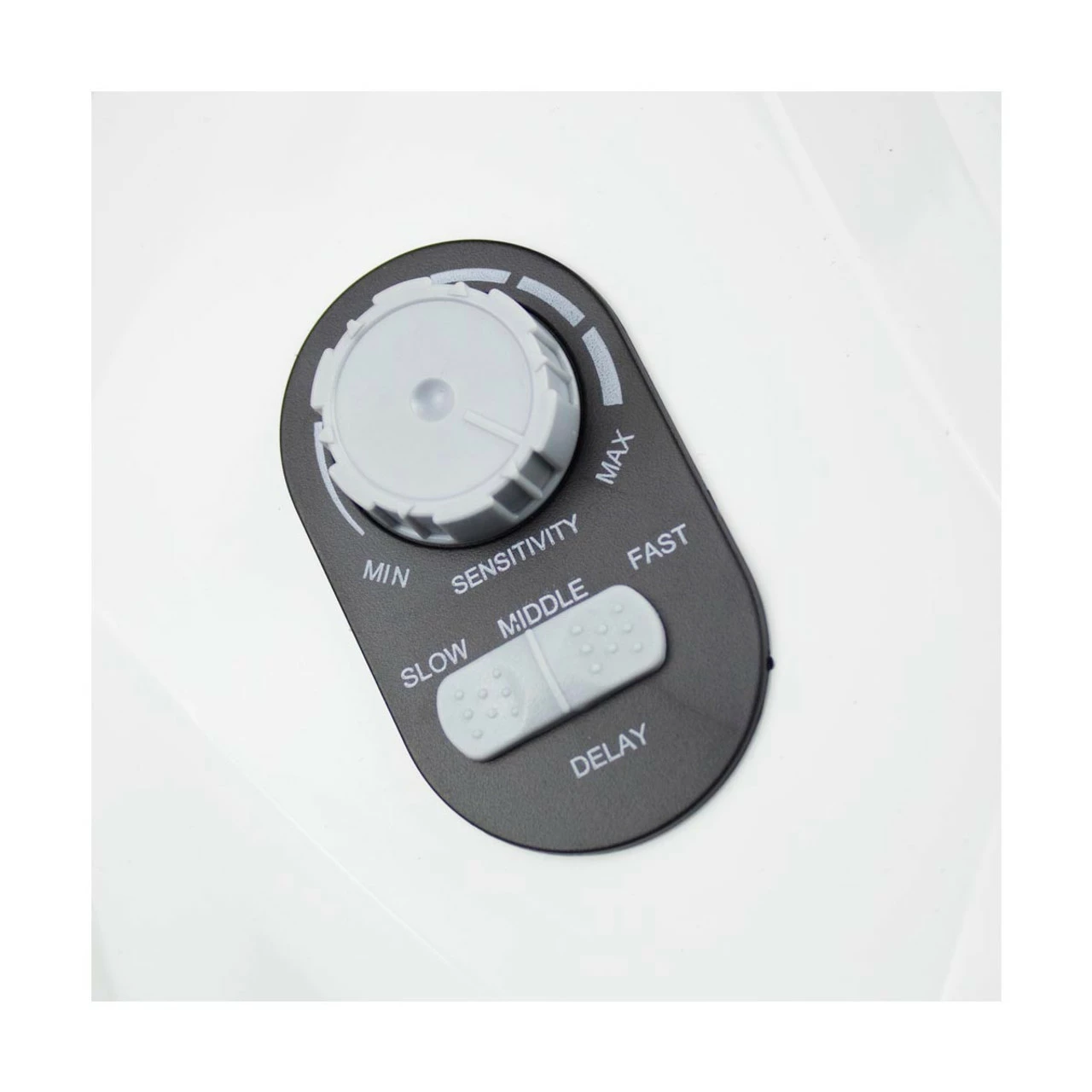

• Sensitivity Control: Infinitely Adjustable From Low To High
• Arc Sensor: 4
• Size (Blow Assembly): 192x190x101mm
• Storage Temperature: -10°C To 50°C
• System Alarm: 85dBA@10CM
• Battery Charging Time: 3 Hours

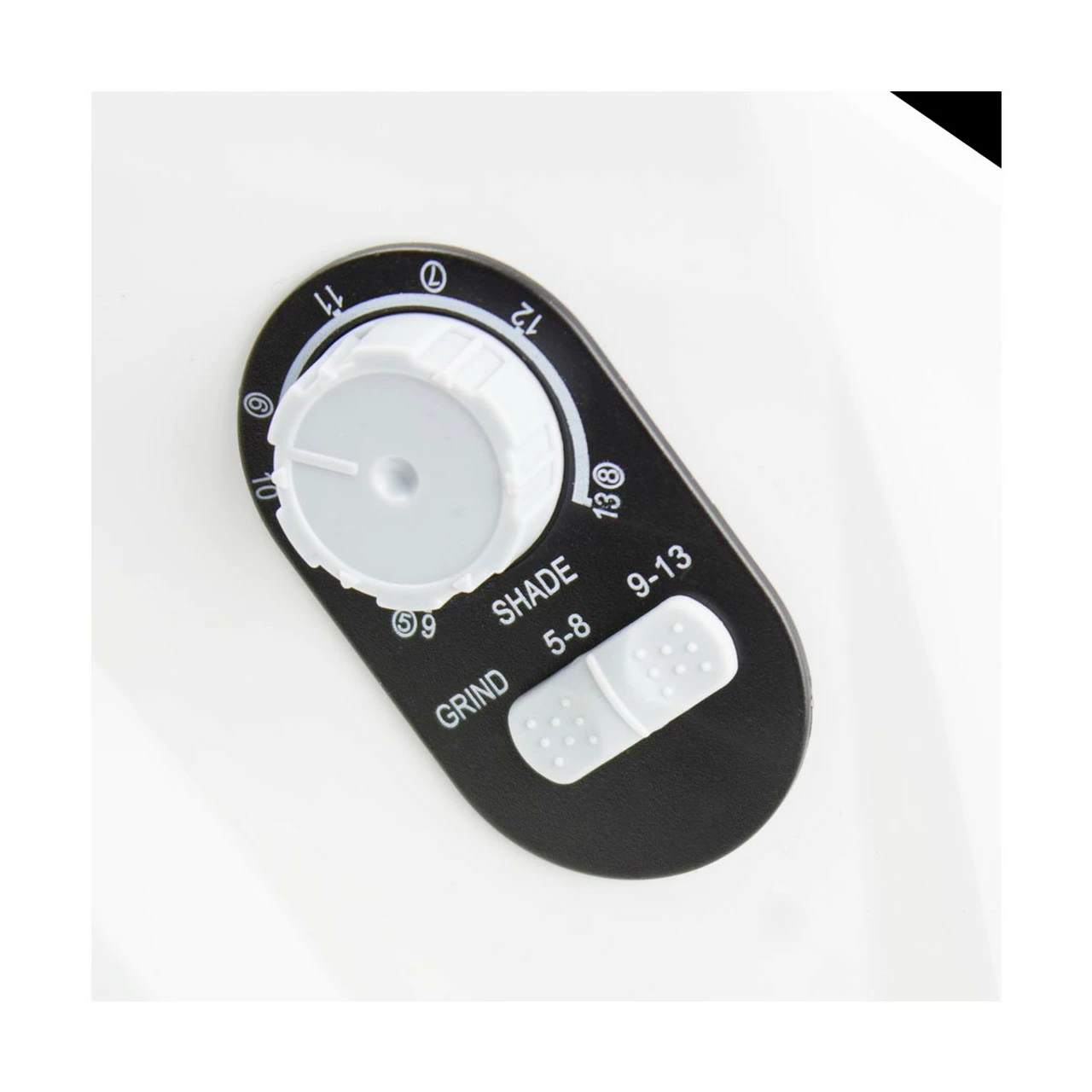

• Shade Control: External
• Viewing Area: 98x55mm
• Shoulder Straps & Battery: 1.1KG

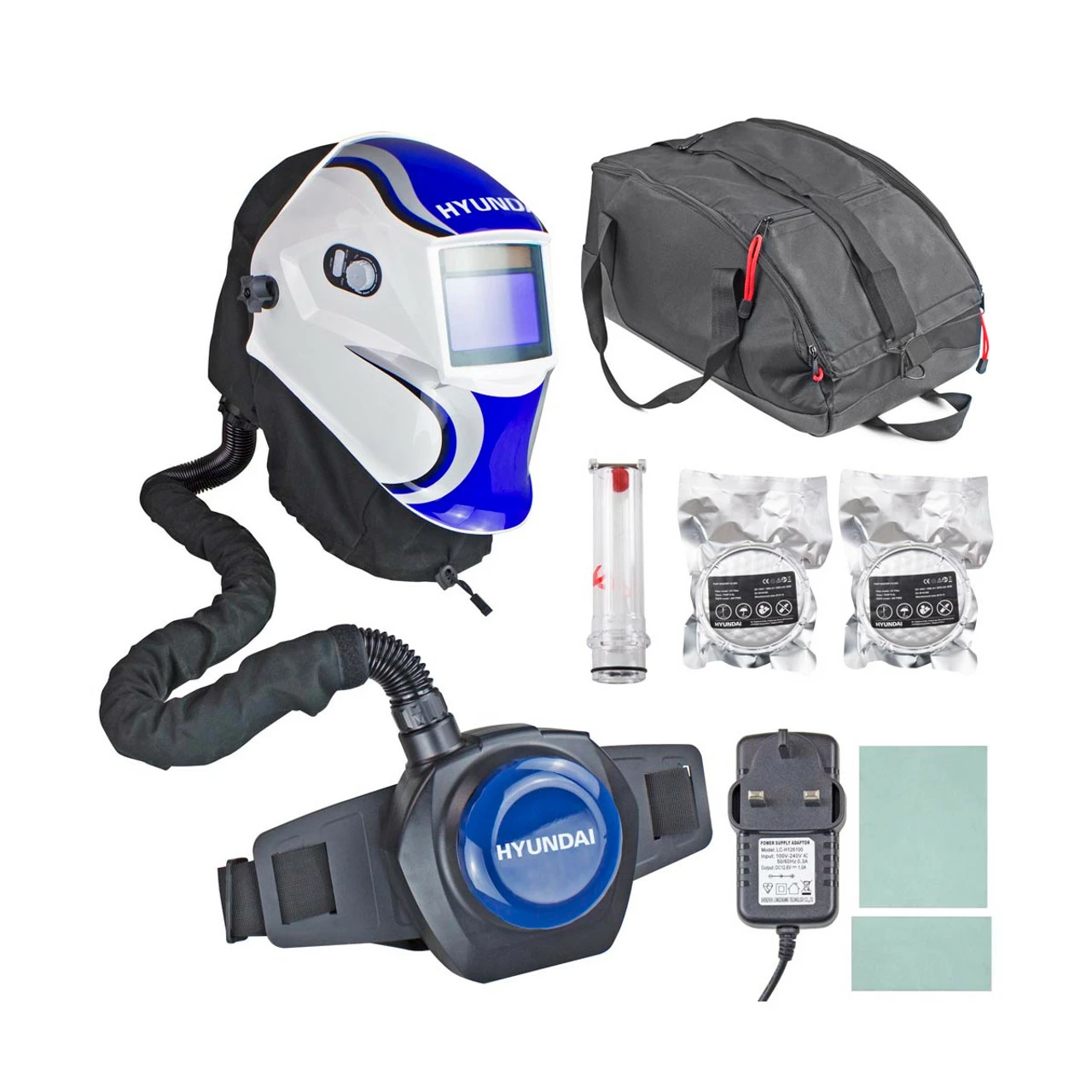

What is Included:

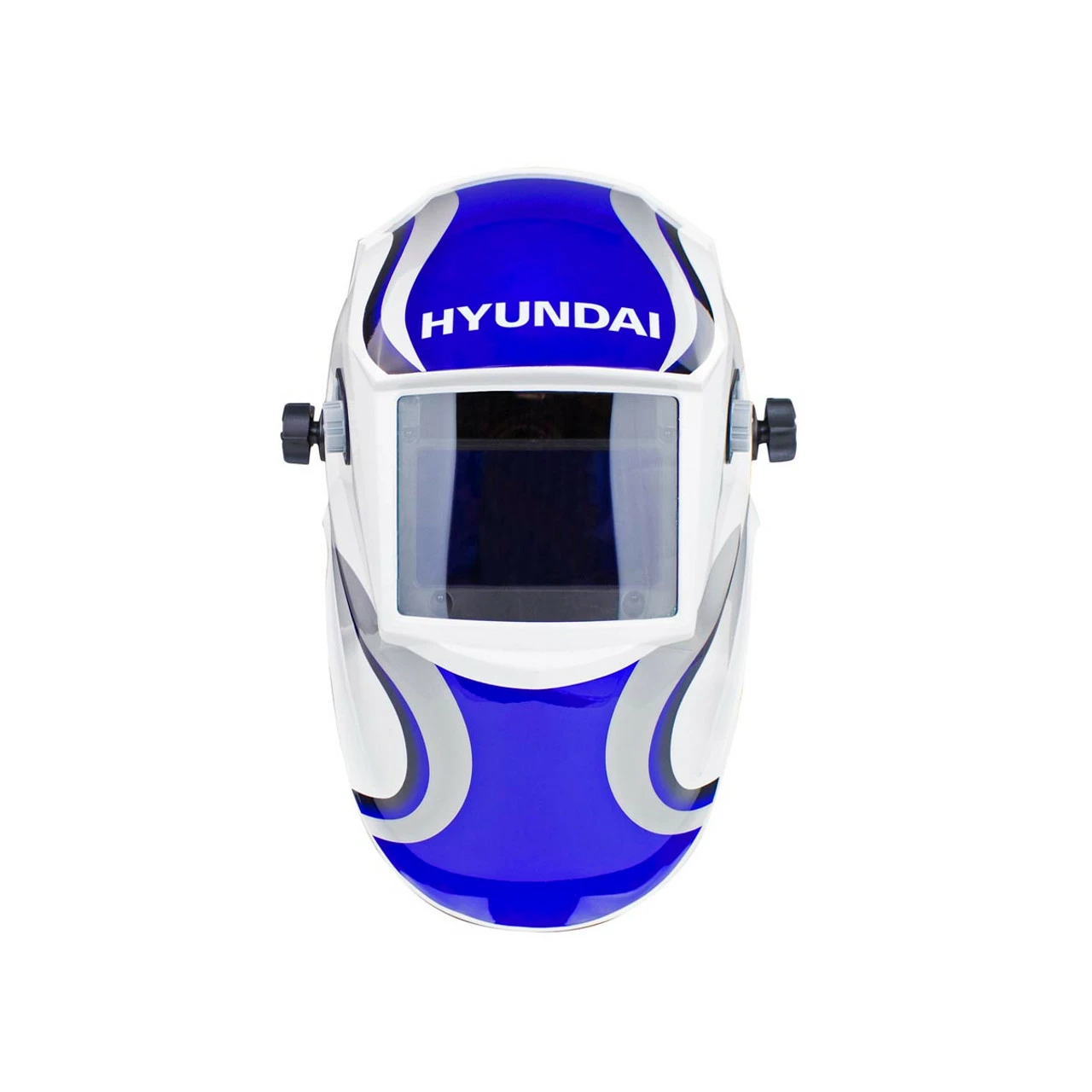

• 1x Helmet With Darkening Lens

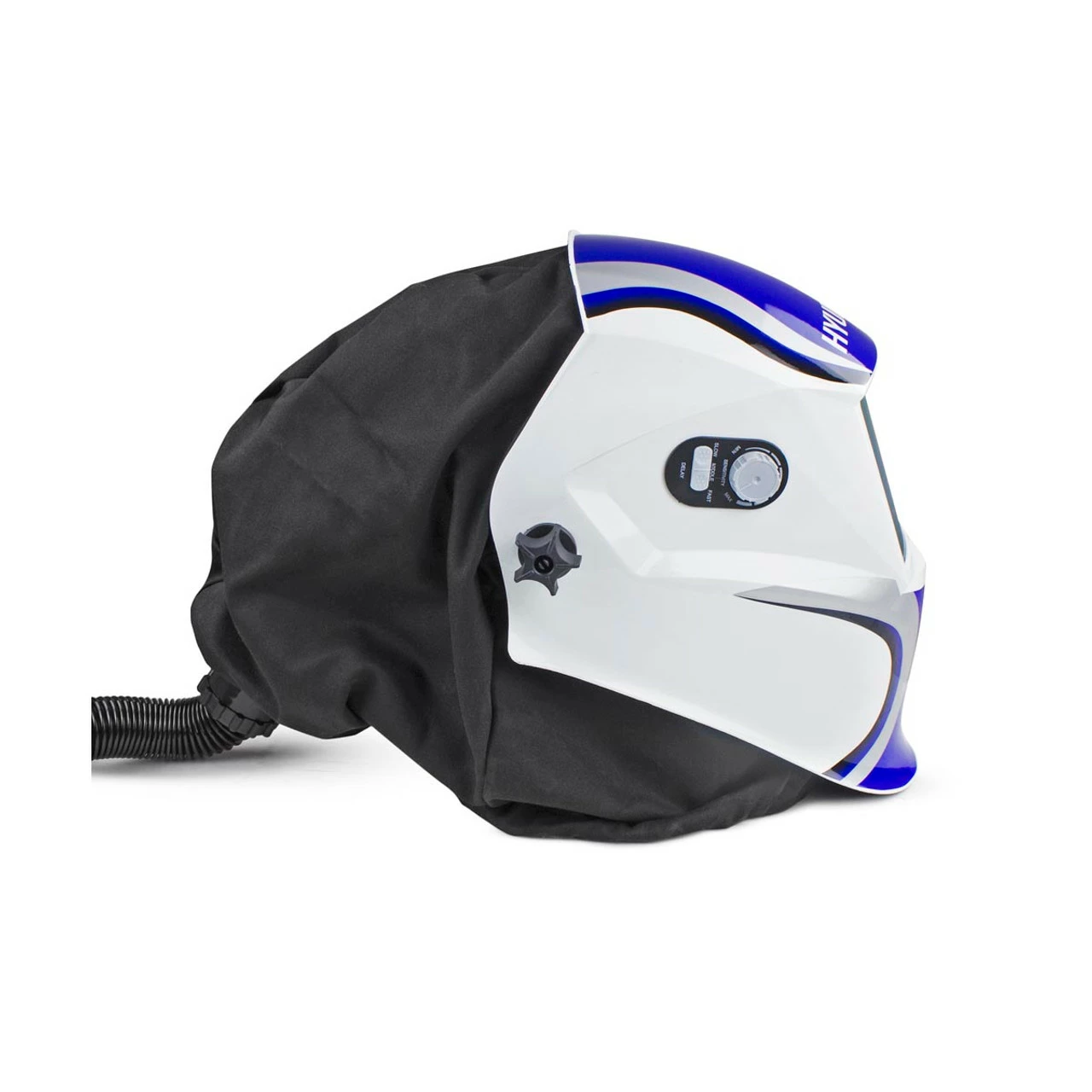

• 1x Hood & Headgear System
• 1x Breathing Tube

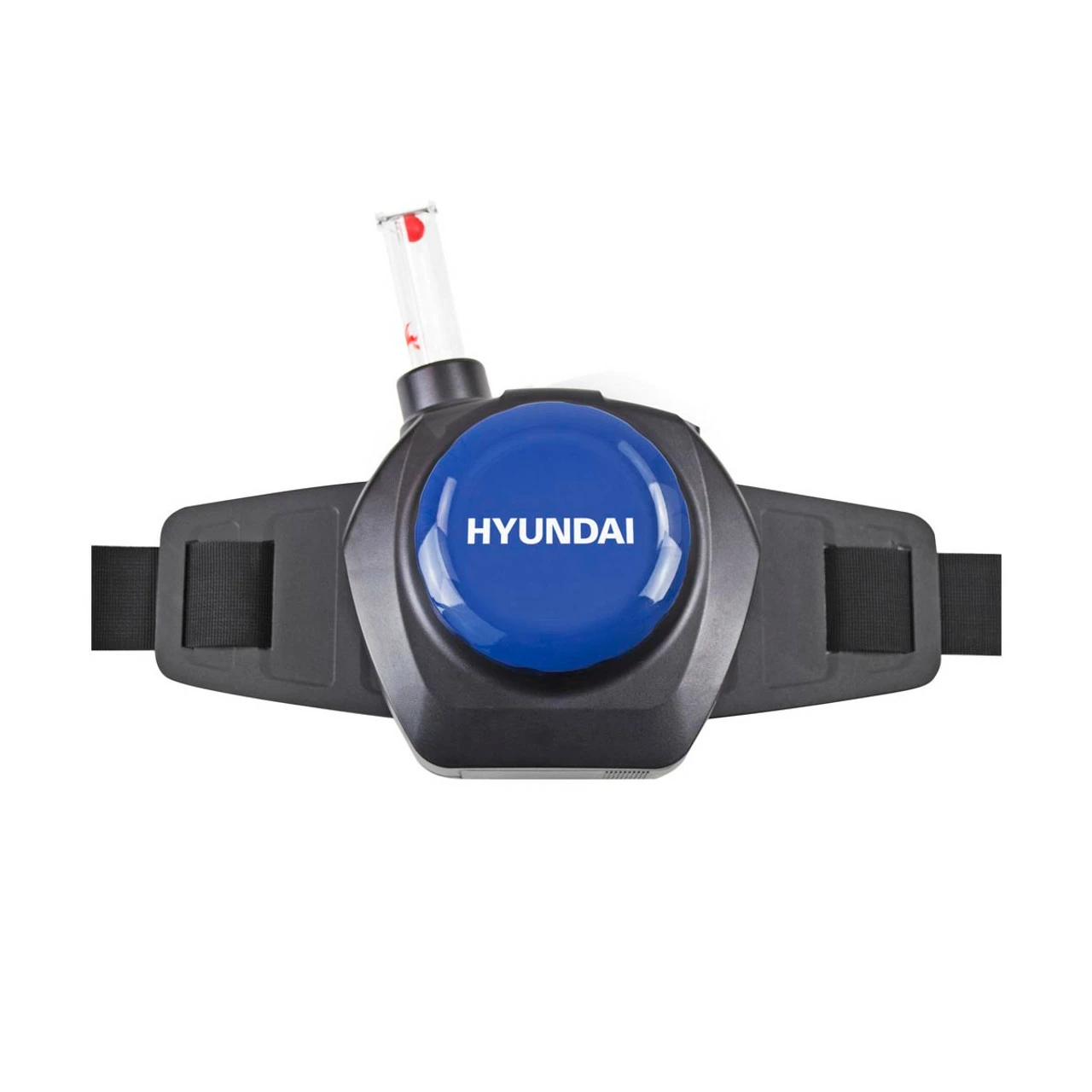

• 1x Blower Assembly With Filtration System
• 1x (Spark Guard Cover, Foam Pre Filter & HEPA Filter)
• 1x Belt Assembly
• 1x Battery Charger

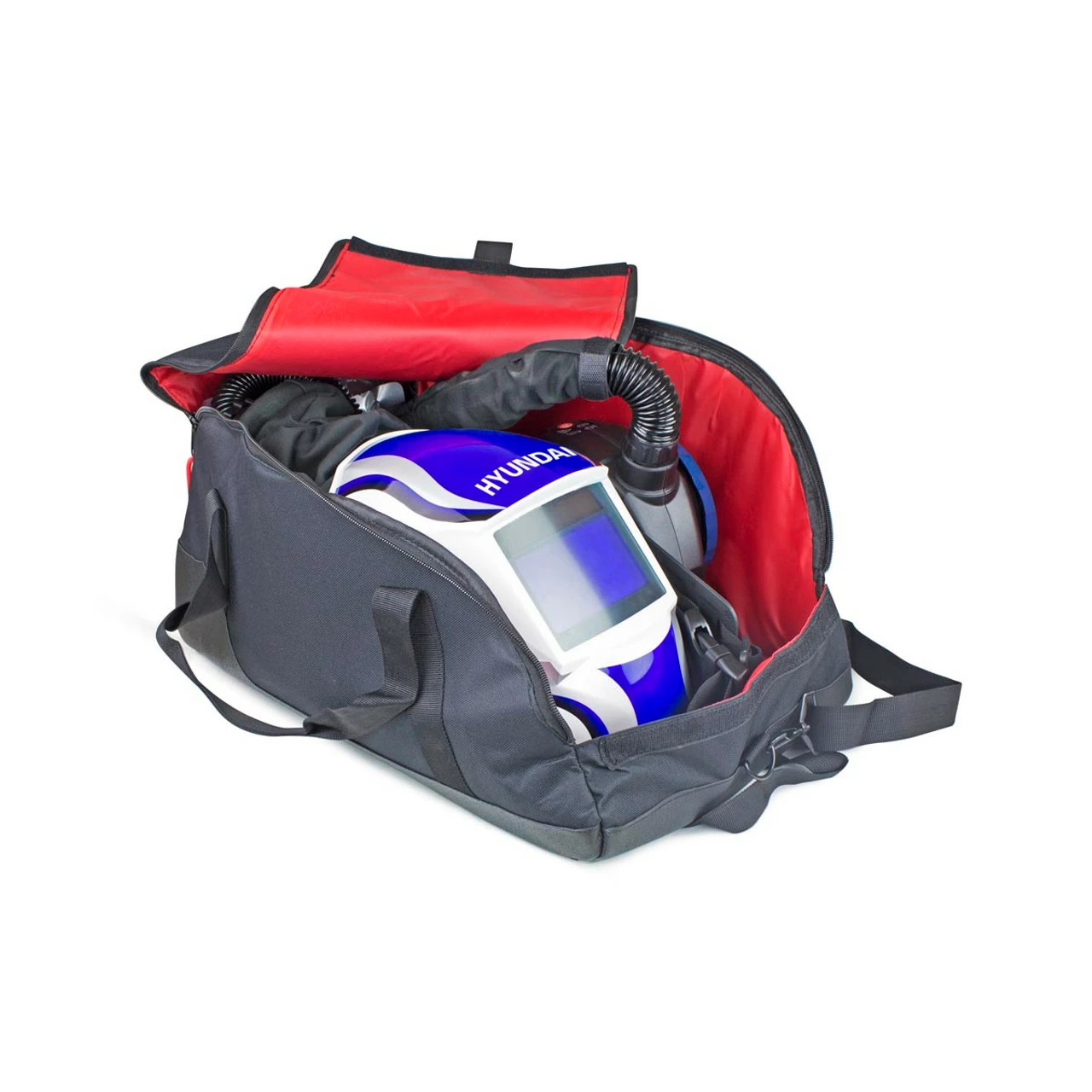

• 1x Kit Bag
• 1x User Manual
